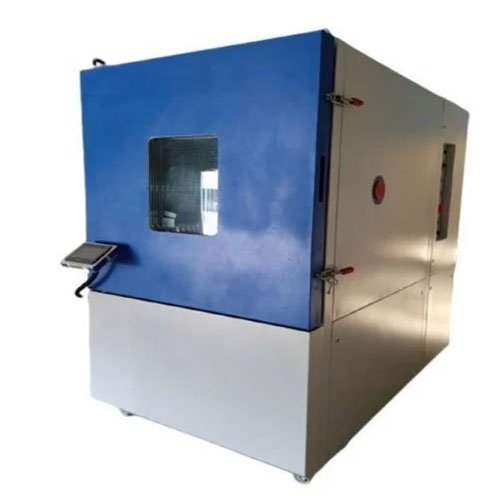

Climatic Test Chamber/ High Low Temperature Test Chamber – CTC
Technical Data Sheet :
▪ Temperature Range: -40℃ + 180℃ ±1℃ -70℃ + 180℃ ±1℃
▪ Humidity Range: 20% to 98%, ±3% RH
▪ Dew Point Range: +4℃ to +85℃
▪ Climate Range: +25℃ to +85℃
▪ Rate of Change of Temperature: #3℃ / Minute #5℃ / Minute #10℃ / Minute #15℃ / Minute
Standard Test Space :
| Model No. | Volume (Liters) | W (MM) | D (MM) | H (MM) |
| CTC - 120 | 120 | 450 | 450 | 600 |
| CTC - 200 | 200 | 600 | 600 | 600 |
| CTC - 500 | 500 | 750 | 750 | 900 |
| CTC - 1000 | 1000 | 1000 | 1000 | 1000 |
• Test Space can be provided as per customer requirement.
• All performance measured at Room temperature / Ambient of ±25℃ to ±2℃
• Appearance & Design of Chamber may vary depending on the internal dimension
Features :
✓ Dual loop Microprocessor programmer, Touchscreen based HMI with ethernet facility.
✓ Unlimited real time recording of temperature measured values versus time (log on Pen Drive).
✓ Recordings in CSV format (Comma Separated Value) for easy export to Excel® to Pendrive via USB
✓ interface placed on the front panel.
✓ Cycles as per requirement can be programmed directly from the touchscreen.
✓ Remote Monitoring through PC on Ethernet with VNC. VNC will be free download version.
