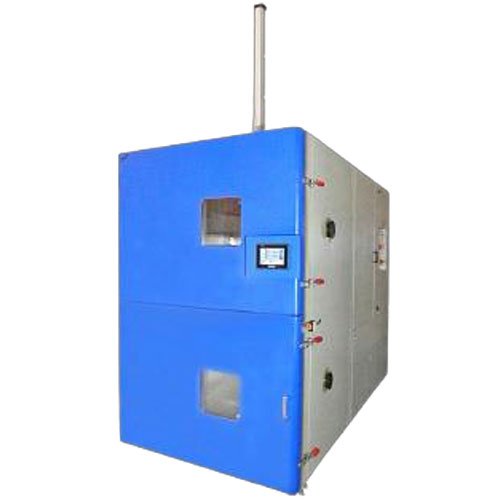

Thermal Shock Test Chamber – TSC

Technical Data Sheet

▪ Temperature Range: Hot Zone: +50℃ to +220℃ ±1℃ Cold Zone: +50℃ to -80℃ ±1℃
▪ Humidity Range (in Cold Zone) (Optional) : 20% to 98%, ±3% RH
▪ Dew Point Range for Humidity test: +4℃ to +85℃
▪ Climate Range for Humidity test: +25℃ to+85℃
▪ Options: Humidity In Cold Zone.

• Test Space can be provided as per customer requirement
• Appearance & Design of Chamber may vary depending on the internal dimension
• All performance measured at Room temperature / Ambient of ±25℃ to ±2℃

Features :

✓ Dual loop Microprocessor programmer, Touchscreen based HMI with ethernet facility.
✓ Unlimited real time recording of temperature measured values versus time (log on Pen Drive).
✓ Recordings in CSV format (Comma Separated Value) for easy export to Excel® to Pendrive via USB interface placed on the front panel.
✓ Cycles as per requirement can be programmed directly from the touchscreen.
✓ Remote Monitoring through PC on Ethernet with VNC. VNC will be free download version.
✓ Air cooled / Water cooled Semi Hermetic type. CFC free refrigeration system Performance Conform IS 9000, DEF-STD-133, IEC 68 Specifications
✓ PID type controllers OR Microprocessor programmer, Touchscreen based control system with ethernet facility, Recorder. Air cooled / Water cooled / Semi Hermetic type CFC free refrigeration system.
✓ Transfer Time: <10 Sec.
✓ Performance: Conform IS 9000, JSS 55555, 50101, IEC 68, MIL- STD-202, 810, 883, DEF-STD-133 Specifications.
